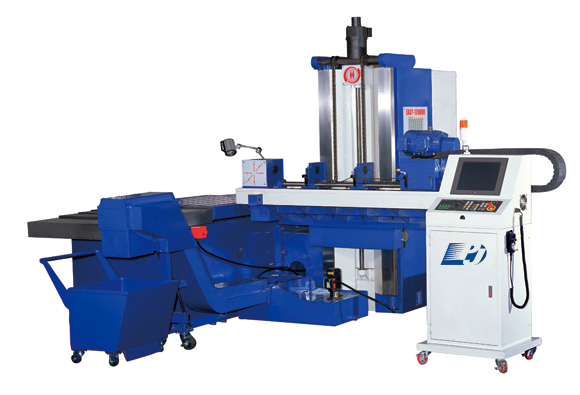

CNC Deep Hole Drilling Machine, Horizontal Deep Hole Machine
-
-
CNC Deep Hole Drilling Machine, Horizontal Deep Hole Machine
ITEM TFD-1200 Working diameter 4 - 40 mm Working depth 1200 mm Working area 1500X1000 mm T-slot 22 mm Table horizontal (X) 1200 mm Vertical (Y) 1000 mm Spindle speed 300-600 rpm(H/L) Feed speed 0-4m/min Spindle motor 7.5HP X axis motor AC Servo 5.7KW Y axis motor AC Servo 5.7KW Z axis motor AC Servo 3KW Hydraulic power for oil pump kg/c㎡ 10HP(100kg/c㎡) Machining oil tank capacity (L) 400-600L Pump output L/min 74L Precise industrial cooling unit kcal/hr 50/60HZ 4500/6000 Cooling capacity W 6975W Liguid pump max.disharge rate I/min 20/30 Max. loading capacity 3000kgs Weight Approximately 9000kgs Occupied floor space 4000 mm X4000 mmX3000 mm Photos include optional accessories,Detailed specifications basis as quotation.
