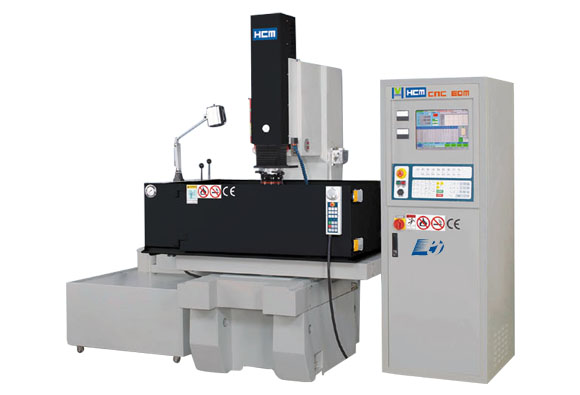

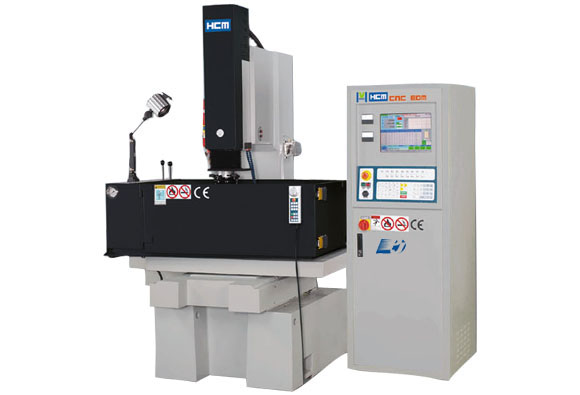

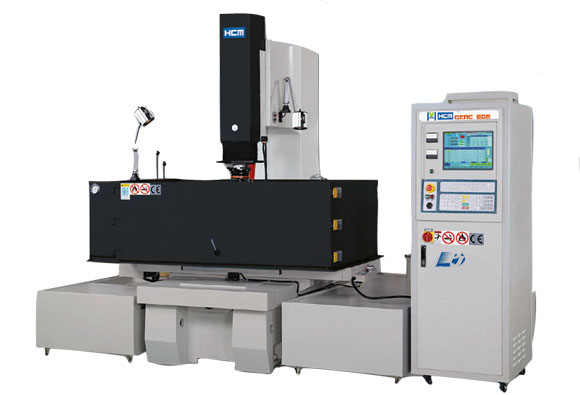

3 in 1 Cantilever style (Machine Body, Controller and Oil Tank) saves space and has high precision.
Certificate
 |
 |
 |
 |
|
Patent Certificate
|
ISO 9001:2000
|
CE
|
CE
|
- Home
- Products
- E.D.M. Machinery
- E.D.M Machine - C Type
E.D.M. Machine - C Type
-
-
E.D.M. Machine
Model H26 H36 H36 supender type X/Y Travel
mm(inch)300×250(12×10) 400×300(16×12) 400×300(16×12) Z Travel
mm(inch)150(6) 185(7) 350(14) U Travel
mm(inch)200(8) 250(10) - Work table
mm(inch)600×300(24×12) 650×400(26×16) 650×400(26×16) Max. work piece
mm(inch)800(31)/450(18)/280(11) 1000(39)/550(22)/360(14) 1000(39)/550(22)/360(14) Max. work piece weight
kgs800 1100 1100 Max.electrode weight
kgs100 130 130 Machine net weight
kgs900 1500 1900 Oil level 110～250 110～300 110～300 Packing size
(L×W×H)
mm(inch)2320(91)/1770(70)/2000(79) 2825(111)/1510(59)/2100(83) 2000(79)/1930(76)/2420(95) Table to electrode plate
mm(inch)25～375(1～15) 50～485(2～19) 0～350(0～14) Model H46 H46 supender type H76 X/Y Travel
mm(inch)500×400(20×16) 500×400(20×16) 700×550(28×22) Z Travel
mm(inch)185(7) 400(16) 250(10) U Travel
mm(inch)300(12) - 400(16) Work table
mm(inch)800×450×(31×18) 800×450×(31×18) 1200×550(47×22) Max. work piece
mm(inch)1250(49)/650(26)/390(15) 1250(49)/650(26)/390(15) 1700(67)/1000(39)/550(22) Max. work piece weight
kgs1400 1400 2200 Max.electrode weight
kgs185 185 250 Machine net weight
kgs1800 2100 3150 Oil level 110～360 110～360 110～530 Packing size
(L×W×H)
mm(inch)3155(124)/1560(61)/2280(90) 2100(83)/2050(81)/2670(105) 3790(149)/2560(101)/2670(105) Table to electrode plate
mm(inch)100～585(4～23) 100～500(4"～20") 120～670(5～26) Photos include optional accessories,Detailed specifications basis as quotation.
-

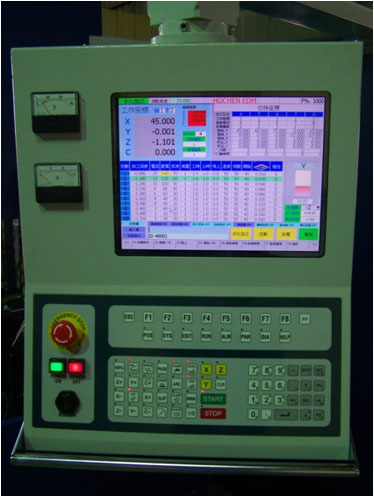

Simple dialog interface make it stable and easy to learn and operate. HCM Only! 1. Simple interface with all functions. No need to be in front of controller during operation

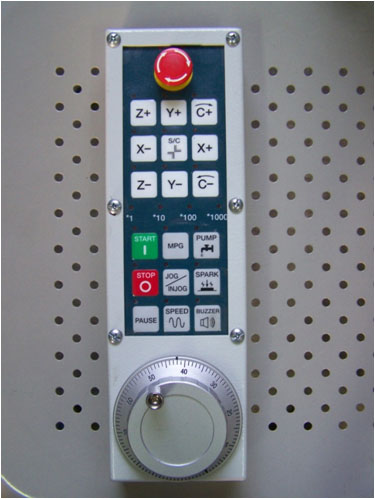

2. MPG is very user-friendly with minimum unit – 0.001
