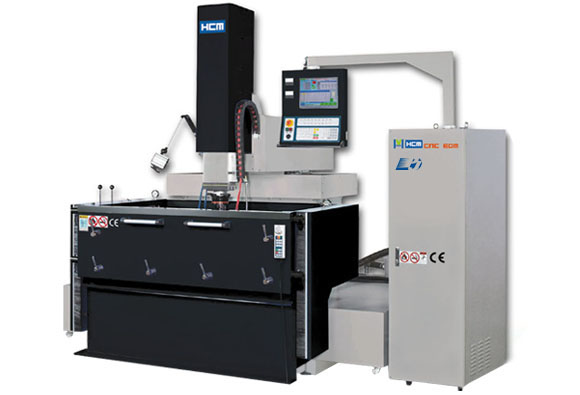

The work table is an integral part of the machine base, allowing ultra-heavy load while maintaining discharge accuracy. It's the best choice for large workpieces.
 |
 |
 |
 |
|
Patent Certificate
|
ISO 9001:2000
|
CE
|
CE
|
| Model | H50 | H70 | H80 | H140 |
|---|---|---|---|---|
| X/Y Travel mm(inch) |
500×400(20×16) | 700×500(28×20) | 800×600(31×24) | 1400×700(55×28) |
| Z Travel mm(inch) |
350(14) | 400(16) | 400(16) | 500(20) |
| Work table mm(inch) |
1000×600(39×24) | 1000×600(39×24) | 1000×600(39×24) | 1700×1000(67×39) |
| Max. work piece mm(inch) |
1260(50)/950(37)/520(20) | 1500(59)/1150(45)/520(20) | 1700(67)/1150(45)/520(20) | 2200(87)/1550(61)/700(28) |
| Max. work piece weight kgs |
2500 | 3000 | 3200 | 6500 |
| Max.electrode weight kgs |
200 | 250 | 250 | 500 |
| Machine net weight kgs |
3400 | 3450 | 3600 | 8800 |
| Oil level | 110～450 | 110～450 | 110～450 | 110～650 |
| Packing size (L×W×H) mm(inch) |
2820(111)/2880(113)/2720(107) | 4370(172)/2880(113)/2720(107) | 4570(180)/2880(113)/2720(107) | 4200(165)/5070(200)/3700(146) |
| Table to electrode plate mm(inch) |
450～800(18) | 450～850(18～33) | 450～850(18～33) | 600～1100(24～43) |
| Model | H160 | H210 | H308 |
|---|---|---|---|
| X/Y Travel mm(inch) |
1600×750(63×30) | 2000×750(79×30) | 3115×850(123×33) |
| Z Travel mm(inch) |
550(22) | 600(24) | 600(24) |
| Work table mm(inch) |
1700×1000(67×39) | 1700×1000(67×39) | 3100×1000(122×39) |
| Max. work piece mm(inch) |
2550(100/1550(61)/700(28) | 2900(114)/1500(59)/700(28) | 3700(146)/1550(61)/700(28) |
| Max. work piece weight kgs |
7000 | 9500 | 13800 |
| Max.electrode weight kgs |
500 | 500 | 500 |
| Machine net weight kgs |
8850 | 10500 | 18000 |
| Oil level | 110～650 | 110～650 | 110～650 |
| Packing size (L×W×H) mm(inch) |
4300(169)/5070(200)/3700(146) | 5000(197)/5070(200)/3700(146) | 6350(250)/5450(215)/3700(146) |
| Table to electrode plate mm(inch) |
600～1150(24～45) | 600～1200(24～47) | 600～1200(24～47) |
Photos include optional accessories,Detailed specifications basis as quotation.
 |
 |
| Simple dialog interface make it stable and easy to learn and operate. | 1. Simple interface with all functions. No need to be in front of controller during operation 2. MPG is very user-friendly with minimum unit – 0.001 |
Conversation display shows all the functions, it's easy to know all working information and convenient to control.
 |
 |
 |
 |
 |

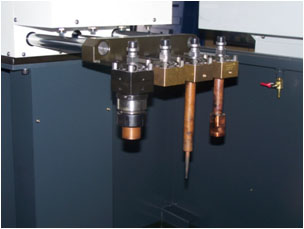

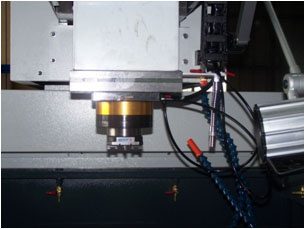

| Cutting with ATC that can go with W1~W12 | Spiral Machining at any angle with C-axis |
