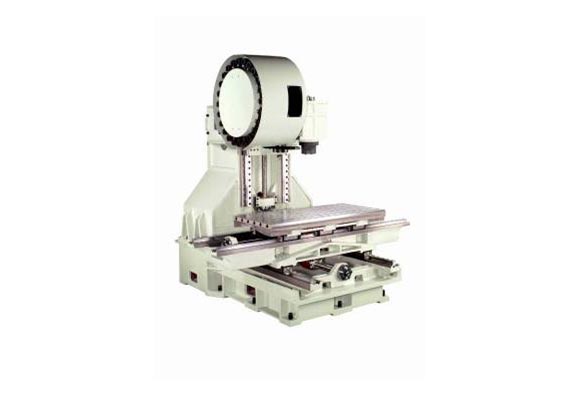

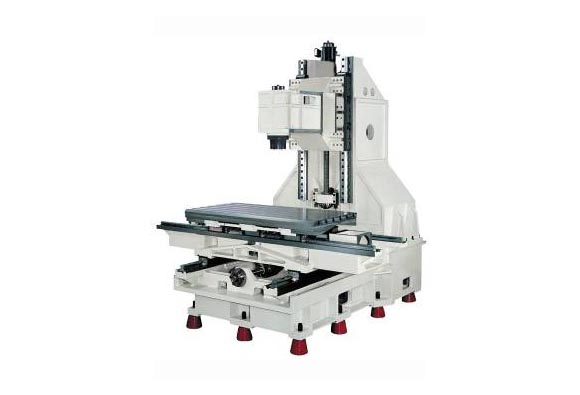

    • Meehanite  casting, high rigidity desigh

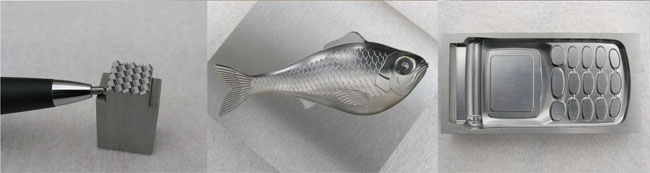

    • Fanuc controller, useful in Optical, Electronics, Medical, Aerospace Industry
    • High acceleration&Rapid displacement

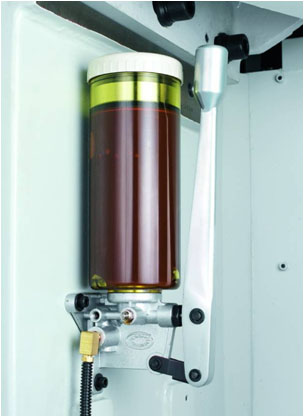

    ECO-LUBICATE SYSTEM

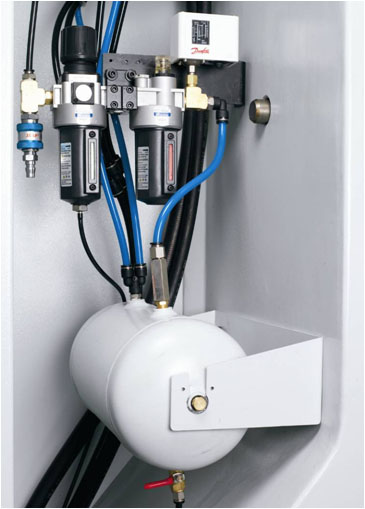

         		 High Speed Vertical Machining Center - Independent drum

    ECO-Lubicatesystem

    Independent drum

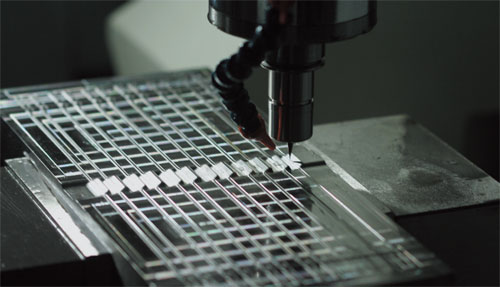

  • High Speed Vertical Machining Center

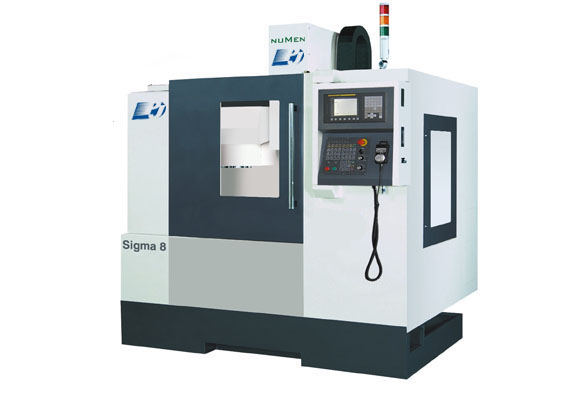

      Sigma 8 Sigma 9 Sigma 11 Sigma 11s
    (box way)
    X/Y/Z travel
    (mm)    		 850/510/610 1020/510/510 1100/600/510 1100/600/560
    Spindle nose to table surface
    (mm)    		 100～710 165～675 120～630 100～760
    Table size
    (mm)    		 1000×460 1070×510 1300×600 1300×600
    Max.table loading weight
    (kg)    		 500 500 1000 1100
    X/Y/Z feed
    (m/min)    		 36/36/36 10000 36/36/32 20/20/15
    Max cutting feed
    (m/min)    		 10 10 15 10
    Spindle speed
    (rpm)    		 10000/12000/16000 10000/12000/16000 10000/12000/20000 10000

    Photos include optional accessories,Detailed specifications basis as quotation
