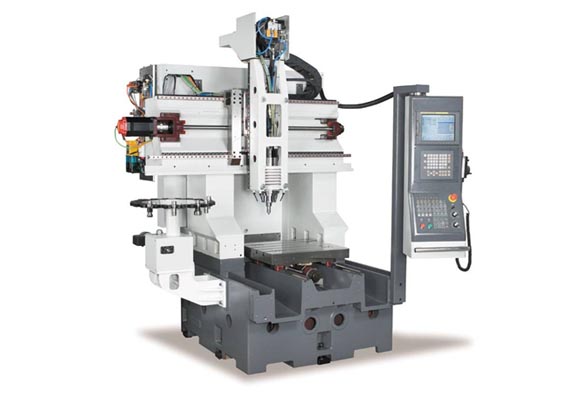

    1. 3 in 1 Cantilever style

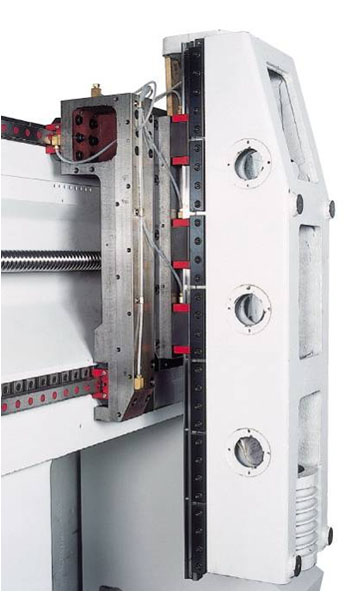

    2. Machine body are all special design casting, support high rigidity, feed and precision.
    High Speed Machining Center High Speed Machining Centers High Speed Machining

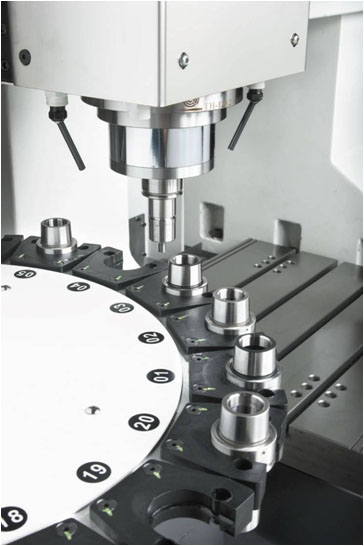

    ATC

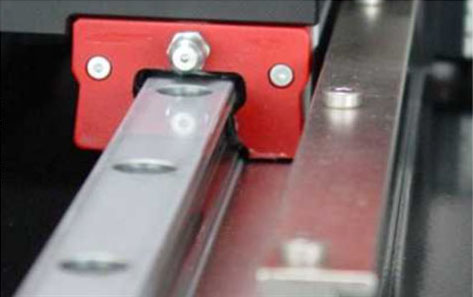

    Liner scale

  • High Speed Machining Centers

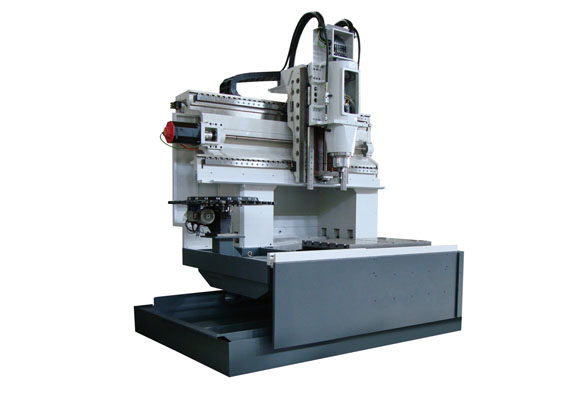

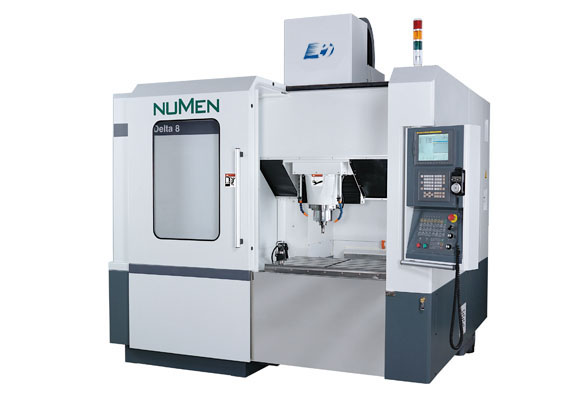

    Model Delta 6 Delta 8 Delta 12
    X/Y/Z travel
    (mm)

    600/550/360

    		 850/700/480 1200/850/480
    Spindle nose to table surface
    (mm)    		 130~510 150~630 150~630
    Table size
    (mm)    		 600x550 950x660 1300x850
    Size of T-Slot
    (mm)    		 14x4x100 18x6x100 18x8x100
    Max.table loading weight
    (kg)    		 300 600 1000
    X/Y/Z feed
    (m/min)    		 30/30/24 30/30/30 30/30/30
    Cutting Feed Rate
    (m/min)    		 20 15 150
    Spindle Taper HSK-E40 BBT40
    HSK-A63
    HSK-E50    		 BBT40
    HSK-A63
    HSK-E50
    Spindle speed
    (rpm)    		 24000
    30000
    36000    		 20000
    24000
    30000    		 20000
    24000
    30000
    Weight of Machine
    (kg)    		 4000 11000 11000

    Photos include optional accessories,Detailed specifications basis as quotation
