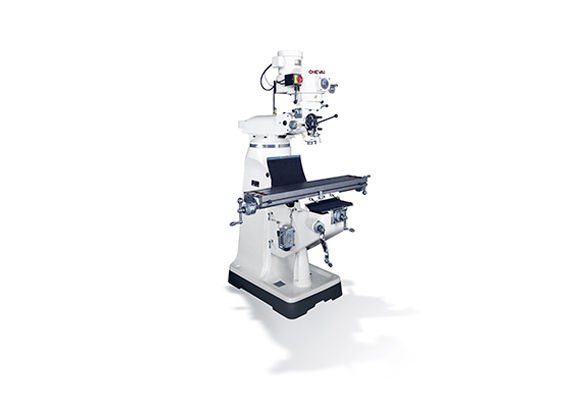

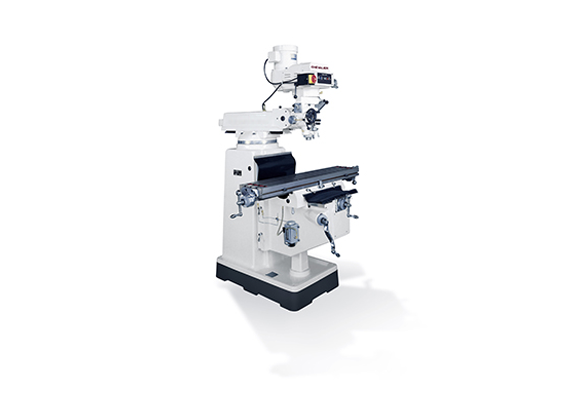

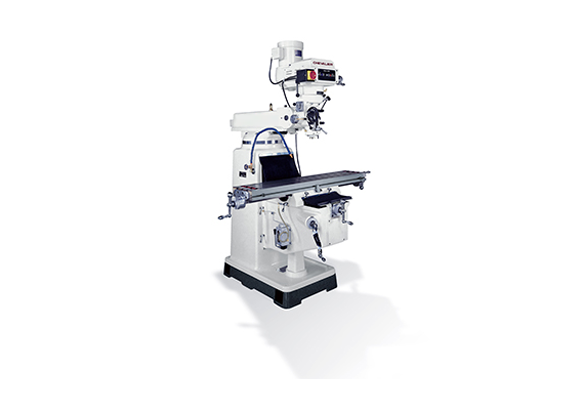

Turret Milling Machine(FM series)

  • Turret Milling Machine - FM series
  • Turret Milling Machine - FM series
  • Turret Milling Machine - FM series
  • Turret Milling Machine - FM series
    • Dynamically Balanced Motor and Ground Pulleys.
    • Chrome-Plated and Bearing Supported Motor Shaft Provides An Extremely Smooth, Low Vibration Quiet Drive.
    • High Precision Spindles Use Class 7 Angular Contact Bearings.
    • Spindle Runout Guar Anteed to be Within 0.00015".
    • The Dovetail and Square Slideways of The Table, Saddle and Column Are Laminated With .
    • Turcite-B, Hardened and Ground For Precise, Smooth And Wear Resistant Movement.
    • The hard chrome quill is ground to mirror finish to ensure smooth movement.
    • Double-nut Mounting of table and saddle lead screws eliminates backlash.
    • One-piece Pinion Gear and Shaft; one-piece worm gear & shaft.
  • Table Size up to 254 x 1270mm (10"x 50")
    Table Load up to 450kg(990lb)
    Spindle Speed up to 60~4,000rpm
    Spindle taper R8 or NST30
    Quill Travel 127mm(5”)
    *Dovetail Ways / Square Ways
    *Step Pulley Head / Vari-Speed Head

    • Vises

      • B95-0101 Angle Lock Vise W/Swivel Base 6" (150mm)
      • B95-0102 Angle Lock Vise W/Swivel Base 8" (200mm)
      • B95-0105 6" Vise W/Swivel Base 6" (150mm)
      • BL96-0304 Angle Lock Vise W/Swivel Base 6" (150mm)
      • BL96-0305 Kurt Angle Lock Vise 8" (200mm)
      • BL96-0314 Kurt Swivel Base For 6" Vise.
      • BL96-0315 Kurt Swivel Base For 8" Vise.

      Others

      • B95-0203 Ground Parallels 18 pcs/set.
      • B95-0402 Rotary Table (Vert. & Horiz) 12" (300mm)
      • BL96-0801 Dorian Right Angle Attachment R-8 FM-2S.3VS.
      • BL96-0802 Dorian Arbor Support R-8 FM-2SK.3VK.
      • BL96-0803 Dorian 1" Arbor R-8 FM-3VKH.
      • B95-0429 Right Angle Head NST-30 FM-2/3 series.
      • B95-0430 Slotting Attachment G28 FM-2/3/4 series.
      • B95-0432 Right Angle Head NST-40 FM-4 series.
      • B95-0435 Right angle Head arbor Support Assy. NST-40 FM-4 series.
      • B95-0502 Clamping Kits. 5/8" (52pcs.)
      • BL96-0601 Lyndex R-8 Collet Set 1/8"~7/8" (12pcs./set)
      • B95-0201 Riser Block 4" (100mm) FM-2/3 series.
      • B95-0202 Riser Block 8" (200mm) FM-2/3 series.

      Digital readouts

      • BL45-0302 Acu-Rite 200M 2 axis DRO 12"x 36" FM-2S, 3VS (48" TABLE)
      • BL45-0303 Acu-Rite 200M 2 axis DRO 16"x 36" FM-2SK, 3VK, 3VKH, 4VKH.
      • BL45-0305 Sony Millman 2 axis DRO 12"x 30" FM-2S, 3VS (48" TABLE)
      • BL45-0306 Sony Millman 2 axis DRO 18"x 36" FM-2SK, 3VK, 3VKH, 4VKH.
      • BL45-0307 Acu-Rite 200M 3axis DRO FM-2S.3VS (48" TABLE)
      • BL45-0309 Acu-Rite 200M 3axis DRO FM-2SK, 3VK, 3VKH, 4SKH.
      • BL45-0311 Sony Millman 3axis DRO 12"x 30" FM-2S.3VS (48" TABLE)
      • BL45-0313 Sony Millman 3axis DRO 18"x 36" FM-2SK,3VK,3VKH,4SKH,4VKH.

      Special motor and table

      • B95-0403 Table 9"x 48" (230x 1220mm) FM-2S, 3VS.
      • B95-0407 Two Speed Motor(2HP) FM-2S, 2SK, 2SKH.
      • B95-0408 3HP Spindle Motor 16 SPEEDS FM-2S, 2SK, 2SKH.

      Automatic feeding device

      • B95-0501 Air Power Drawbar FM-2/3 series.
      • B95-0206 Air Power Drawbar FM-4 series.
      • B95 0314* Longitudinal (X) Powerfeed System 110V ONLY FM-2/3 series.
      • B95-0315* Cross (Y) Powerfeed System 110V ONLY FM-2/3 series.
      • B95 0316* Knee (W) Powerfeed System 110V ONLY FM-2/3 series.
      • BL96-0201 Servo #140 table feed Powerfeed 110V ONLY.
      • BL96-0202 Servo #150 table feed Powerfeed 110V ONLY.
      • BL96-0203 Servo #140 crossfeed Powerfeed 110V ONLY.
      • BL96-0204 Servo #150 crossfeed Powerfeed 110V ONLY.
      • BL96-0205 Servo #140 kneefeed Powerfeed 110V ONLY.
      • B95-0317* Gear Driven Powerfeed X AXIS.
      • B95-0318* Gear Driven Powerfeed Y AXIS.
      • B95-0319* Gear Driven Powerfeed W AXIS.
      • B95-0439* Rapid Elevating Drive W/Motor at bottom side of knee FM-2SKH. 3VKH, 4SKH, 4VKH.
      • BL96-0401 Kurt Power Drawbar (Mechanical) R8 FM-2/3 series.
      • BL96-0402 Kurt Power Drawbar (Automatic) R8 FM-2/3 series (Also available in NST30)
      • Machine lamp
      • B95-0404 Machine Lamp W/Out Transformer.
      • B95-0422 Machine Lamp With Transformer.

      Control box system

      • B95-0405A Economic Electric Control Box With Transformer For Machine With 1 or 2 Axes Powerfeed System (Without Transformer For Machine Lamp)
      • B95-0418 Electric Control Box With Knee Type Control Panel For Machine With 1 or 2 Axes Powerfeed System.
      • B95-0418A Electric Control Box With Pendant Control Panel For Machine With 1 or 2 Axes Powerfeed System.
      • B95-0421 Electric Control Box With Knee Type Control Panel For Machine With 3 Axes Powerfeed System.
      • B95-0421A Electric Control Box With Pendant Control Panel For Machine With 3 Axes Powerfeed System.
      • B95-0345A Electric Control Box With Pendant Control Panel For Machine With Rapid Drive With Motor And 1 or 2 Axes Powerfeed System.
      • B95-0346A Electric Control Box With Pendant Control Panel For Machine With One Axis Gear Feeder.
      • B95-0347A Electric Control Box With Pendant Control Panel For Machine With 2 Axes Gear Feeder or 1 Axis Gear Feeder And Rapid Elevating Drive.
      • B95-0349A Electric Control Box With Pedant Control Panel For Machine With 3 Axes Gear Feeder or 2 Axes Gear Feeder And Rapid Elevating Drive.

      Coolant system

        • B95-0409 Coolant Pump & Fittings.
        • B95-0410 Chip Pan FM-2S, 3VS.
        • B95-0411 Chip Pan FM-2SK, 3VK, 2SKH, 3VKH.
        • B95-0443 Chip Pan FM-2SKH, 3VKH.
        • B95-0412 Coolant Pump & Fittings FM-2S, 3VS.
        • B95-0431 Chip Pan FM-4SKH, 4VKH.
        • BL96-0702 Bijur Fluidflex Coolant System.
      = Recommended to be factory installed.* = Related control box system must be ordered together.

      RAPID KNEE ELEVATION

      Rapid knee elevation mechanism, equipped with safety lock.
      • B95-0469

      CONTROL PANEL

      Pendant control panel can be adjusted to a comfortable position for easy operation.
      • B95-0418A, B95-0421A,
      • B95-0345, B95-0346A,
      • B95-0437A, B95-0349A

      CROSS (Y)POWERFEED SYSTEM

      • B95-0315

      LONGITUDINAL (X) POWERFEED SYSTEM

      • B95-0314
