Horizontal Rotary Surface Grinder HR-600AND

  • Horizontal Rotary Surface Grinder HR-600AND
    • Meehanite Class FC 30 casting with slide way provides high stiffness and wear resistance maintaining the accuracy of the machine.
    • Spindle lateral design creates stability during heavy cutting.
    • Spindle Siemens V3 Grade motor provides good water proofing resisting moisture.
    • Vertical feeding uses 3 high stiffness and rigidity linear roller guides allowing smoothly vertical feeding whilst maintaining high stiffness.
    • Small workpiece suction is accomplished by fine electrical magnetic chuck.
  • DESCRIPTION UNIT HR-600AND
    Rotary magnetic chuck dia. mm 600
    Maxi grinding radius mm 325
    Distance of table surface to spindle surface center mm 450
    Rotary magnetic chuck speed r.p.m. 10~150
    Rotary magnetic chuck horse power kw 3
    Spindle motor HP SIEMENS, V3, 10HP
    Spindle speed (50/60Hz) r.p.m. 1450/1750
    Auto downfeed horse power W Servo Motor 500
    Vertical hand wheel downfeed per revolution MPG/mm x1, x5, x10 /
    0.1, 0.5, 1
    Vertical hand wheel downfeed per graduation MPG/mm x1, x5, x10 /
    0.001, 0.005, 0.01
    Wheel size (dia x width x bore) mm 355x38x127
    Net weight / gross weight (approx) kg 4600/5200
    Packing size (LxWxH) mm 2800x2200x2200
  • Coolant system Magnetic filter Auto. paper strip filter with magnetic separator and coolant system Oil mist collector

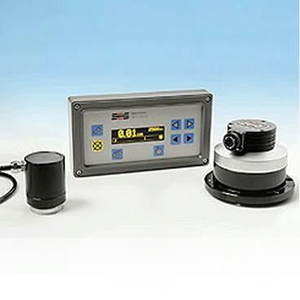

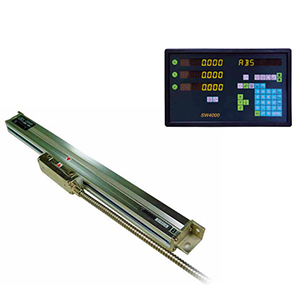

    Demagnetize On line wheel balance system (Manual) SBS (Auto) Digital readout

    Inverter Air-Conditioner
  •

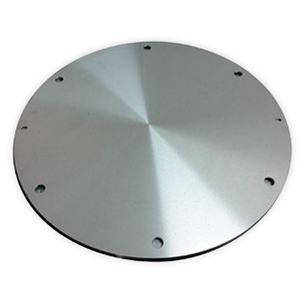

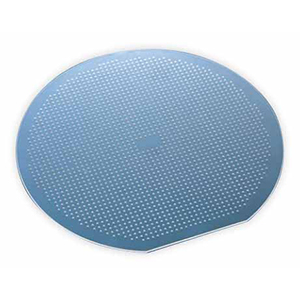

    Si Quariz Ceramics Ceramics Ring

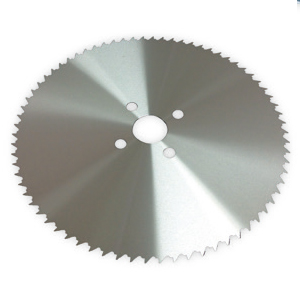

    Retaining Ring Slitting Saws Slitter Knife Spindle parts
