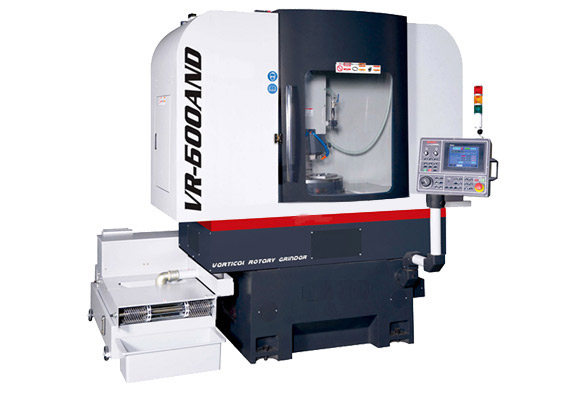

Vertical Rotary Surface Grinder VR-600AND

  • Vertical Rotary Surface Grinder VR-600AND
    • Meehanite Class FC30 casting with high riqid and wear resistance guide way insure machine permanent accuracy.
    • Spindle is designed for providing excellent stability and heavy duty grinding.
    • Siemense V3 grade spindle motor with good watarproof and moisture resistant design.Grade motor provides good water proofing resisting moisture.
    • Vertical feeding guide way use high rigid roller linear guideway (block x 6) provide smooth movement and rigidity.
    • Work table with fine pitch magnetic chuck has powerful attractive force and specalized for small workpiece.
  • DESCRIPTION UNIT VR-600AND
    Rotary magnetic chuck dia. mm 600
    Maxi grinding radius mm 325
    Distance of table surface to spindle surface center mm 325
    Rotary magnetic chuck speed r.p.m. 5~50
    Rotary magnetic chuck horse power kw 3
    Spindle motor HP 15/20
    Spindle speed (50/60Hz) r.p.m. 1450/1750
    Auto downfeed horse power kw 1
    Vertical hand wheel downfeed per revolution MPG/mm x1, x5, x10 /
    0.1, 0.5, 1
    Vertical hand wheel downfeed per graduation MPG/mm x1, x5, x10 /
    0.001, 0.005, 0.01
    Wheel size (dia x width x bore) mm 150x50x25x8
    Net weight / gross weight (approx) kg 4800/5500
    Packing size (LxWxH) mm 3000x1500x2300
  • Coolant system Magnetic filter Auto. paper strip filter with magnetic separator and coolant system Oil mist collector
    Demagnetize On line wheel balance system (Manual) SBS (Auto) Digital readout

    Inverter Air-Conditioner
  •
    Si Quariz Ceramics Ceramics Ring

    Retaining Ring Slitting Saws Slitter Knife Spindle parts
